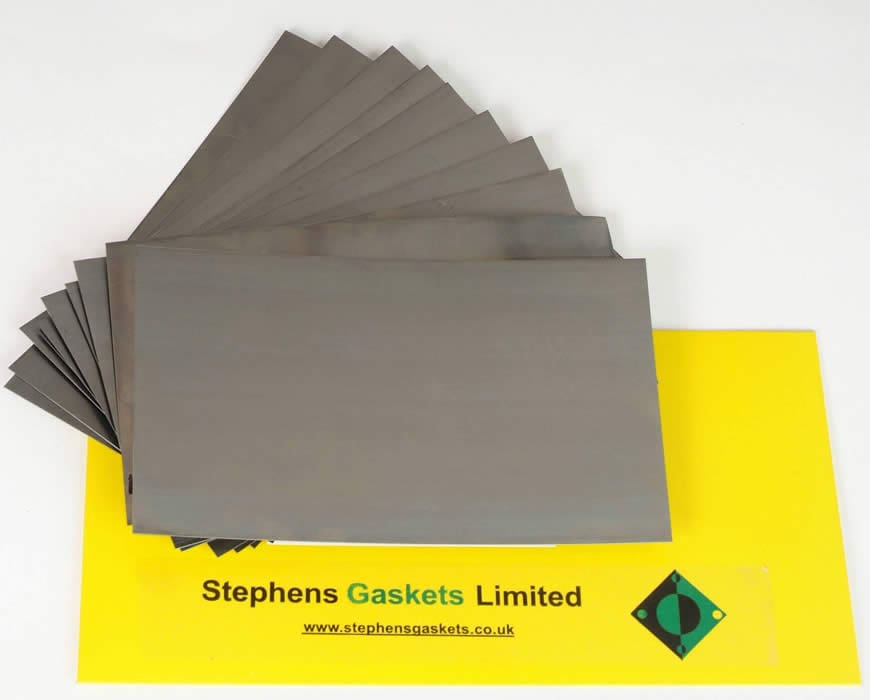

What Are Shim Packs?
They are thin, precisely manufactured metal or plastic shims used to adjust spacing, alignment, and tolerances in mechanical assemblies. By adding or removing shims from a pack, users can achieve precise thickness control without machining new components.
Key Benefits of Shim Packs:
- Fine-tunes alignment for perfect component fit.
- Reduces mechanical wear and stress, extending equipment lifespan.
- Minimizes vibrations and noise for smoother operation.
- Provides a cost-effective solution for adjustment and maintenance.
- Available in custom and pre-cut options for different applications.
Why Choose Shim Packs?
- Enables quick adjustments without re-machining parts.
- Available in various materials to suit industry-specific needs.
- Precision-cut for accurate alignment and load distribution.
Industry-Specific Materials for Shim Packs
We offer shim packs in different materials, ensuring they meet the specific requirements of each application.
1. Stainless Steel
- High corrosion resistance for harsh environments.
- Durable and strong, making it ideal for heavy-duty applications.
2. Brass
- Non-magnetic and highly wear-resistant.
- Excellent for electrical and hydraulic applications.
3. Carbon Steel
- High strength and cost-effective.
- Common in structural and heavy-duty machinery.
4. Aluminium
- Lightweight yet strong for automotive and aerospace use.
- Corrosion-resistant and easy to machine.
5. Copper
- High thermal and electrical conductivity.
- Used in HVAC, power generation, and electronic applications.
6. Plastic (PTFE, Nylon, PVC)
- Lightweight and chemical-resistant.
- Ideal for food processing, medical, and electrical insulation.
Applications of Shim Packs
They are widely used across industries that require precise spacing and alignment adjustments.
- Suspension system adjustments for shock absorber tuning.
- Gearbox and engine assembly for precise tolerances.
- Brake system alignment for even pressure distribution.
- Axle adjustments for improved performance.
- Used in aircraft engine assembly for fine tolerances.
- Ensures landing gear alignment for stability.
- Adjusts control system linkages for precision performance.
- Aligns components in CNC machines, presses, and conveyor systems.
- Adjusts bearing preload for improved lifespan and reduced noise.
- Ensures pump and motor shaft alignment to prevent vibrations.
- Levels and aligns steel structures in bridges and buildings.
- Prevents excessive mechanical stress in excavators and cranes.
- Adjusts hydraulic system pressure for smoother performance.
- Aligns propeller shafts for smoother operation.
- Prevents leaks in high-pressure gasket applications.
- Reduces vibration in ship engines for extended lifespan.
- Used in microscopes, cameras, and measurement instruments.
- Ensures precise positioning in medical imaging equipment.
- Helps maintain micron-level tolerances in semiconductor production.
Common Challenges & Solutions for Shim Packs
While shim packs are a highly effective solution for precise alignment, some challenges must be addressed.
1. Difficulty in Handling & Installation
Shims can be tricky to adjust, especially in tight spaces.
- Solution: Choose pre-assembled packs or self-adhesive options for easier application.
2. Corrosion & Wear Over Time
Exposure to moisture and chemicals can degrade low-quality materials.
- Solution: Choose pre-assembled shim packs or self-adhesive options for easier application.
3. Limited Availability of Custom Sizes
Standard shims may not always fit specific machinery requirements.
- Solution: Work with Stephens Gaskets for custom packs designed to exact specifications.
4. Inconsistent Thickness & Quality Issues
Poor-quality shims may cause misalignment and inefficiency.
- Solution: Use precision-manufactured shim packs from trusted suppliers like Stephens Gaskets.
5. Excessive Vibration & Noise in Applications
Incorrectly fitted shims may cause instability in machinery.
- Solution: Use high-precision shims tailored for vibration control.
Choosing the Right Shim Packs for Your Application
- Load-bearing capacity: Select the right material for durability.
- Thickness tolerances: Available in various sizes for precise adjustments.
- Corrosion resistance: Choose materials suited for your environment.
- Custom or pre-cut options: Tailored solutions for all industry needs.
Why Buy from Stephens Gaskets?
- Over 70 years of experience in precision shim manufacturing.
- High-quality, ISO-certified production standards.
- Custom and bulk orders available for any industry.
- Fast UK and international supply to minimize downtime.
- Expert technical support for selecting the right shim pack.
Order High-Quality Shim Packs Today!
– Custom shim packs available for specific requirements
– Bulk supply options with competitive pricing
